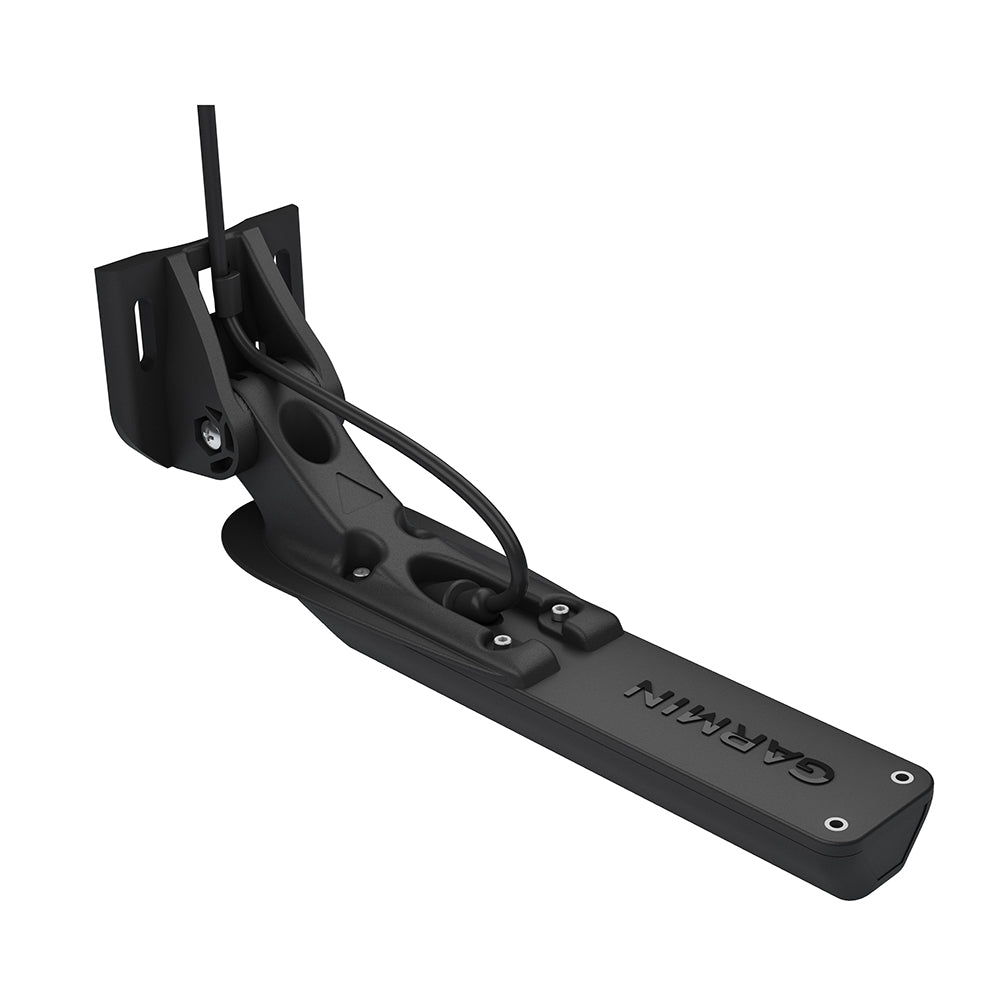

Garmin GT34UHD-TM Ultra HD Transom Mount Transducer [010-12776-00]

GT34UHD-TM Ultra HD Transom Mount TransducerUltra High-Definition Sonar System Transom Mount TransducerAdd stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).Ultra High-Definition ClearVü ScanningThis mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.Ultra High-Definition SideVü ScanningThis mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.Specifications:Frequency: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz Power: 500W Beamwidth: Ultra High-Defintion ClearVü: 0.74° x 46° Ultra High-Defintion SideVü: 0.44° x 55° Maximum depth Ultra High-Defintion ClearVü: 200' down Ultra High-Defintion SideVü: 125' sides, 250' total Depth/Speed/Temperature: Depth and Temperature Number of pins: 12-pin Cable length: 20' Supported deadrise/Transom angles: 0°-70° degree transom WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imagining: Down/Side Chirp: Non Traditional Cable Length (Feet): 20' Box Dimensions: 4"H x 7"W x 10"L WT: 2 lbs UPC: 753759206338
