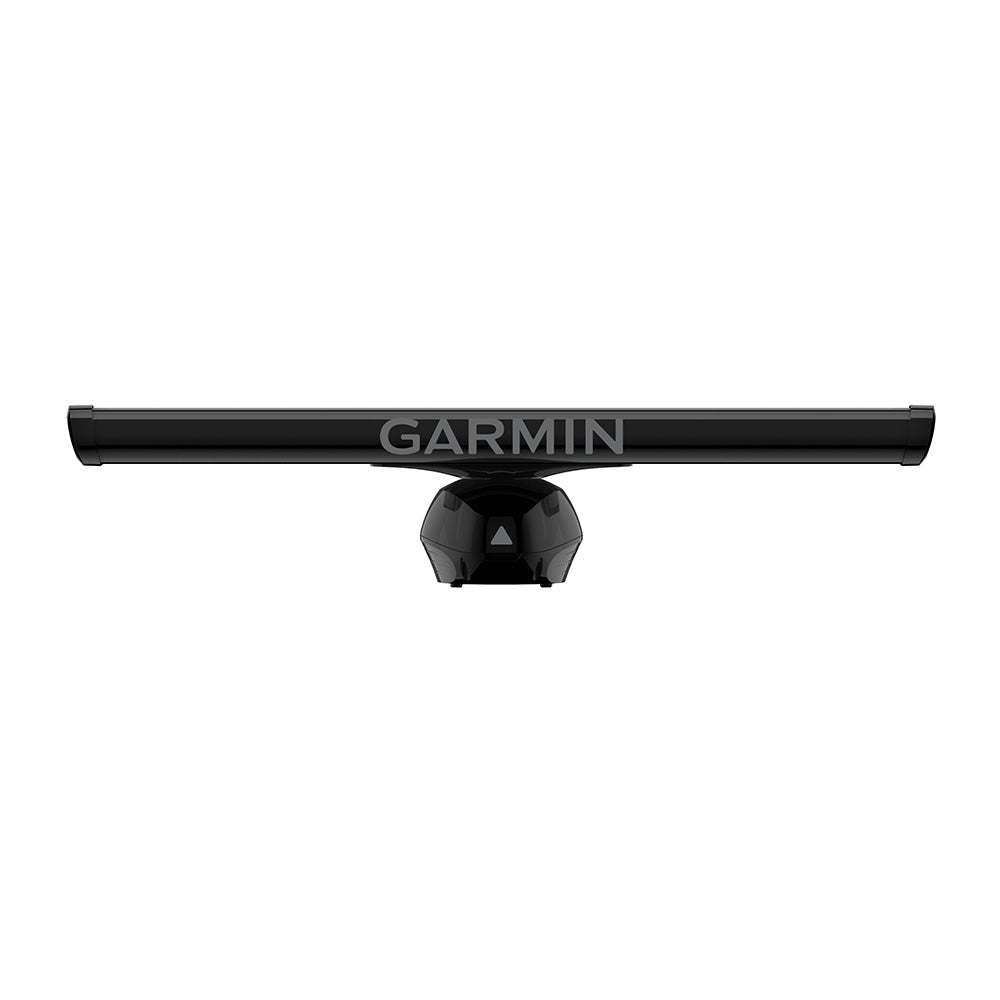

Garmin GMR Fantom 126 Radar - Black [K10-00012-33]

GMR Fantom™ 126 Radar - BlackThis open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection — even in fog or rain.Features: Know what’s coming. MotionScope™ technology shows targets in color as they move closer or away GMR Fantom brings the power (120 watts of it) Get high resolution without wasting energy, thanks to pulse compression Add even more detail to maps with radar overlay — even in a split-screen view High-Powered RadarThis 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.High-Resolution RadarThe 1.25-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Intuitive OperationThis radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.Target SizeAdjust the size of objects on the radar image.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be found.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Dual Range A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long ranges.Dual-Radar SupportUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Dynamic Sea FilterGain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Radar OverlayOverlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.MARPA Target TrackingMini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping users keep track of other vessels and avoid collisions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.VRM & EBL Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.General Specifications: Dimension: 16.6" x 14.3" x 10.7"Pedestal: 42.1 x 36.4 x 27.1 cm; Full assembly: 15.9" height x 75.2" diameter; Full assembly: 40.3 cm height x 190.9 cm diameter Weight: Array: 16 lb (7.3 kg); Pedestal: 34.7 lb (15.7 kg) Waterproof: IPX6 Max Wind Load: 80KT Antenna Length: 72" (182.9 cm) Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower) Beam Width: 1.25° horizontal, 23° vertical Maximum Range: 96 NM Minimum Range: 6 Meters Radar Type: Open-Array Electrical Specifications: Power Input: 10-32 V DC Transmit Power: 120 W Radar Specifications: Dual Range: Yes    Overlay: Yes   Dual Radar Support: Yes  Auto Bird Gain: Yes   Auto Gain: Dynamic Marpa Target Tracking: Yes (requires heading sensor, sold separately) Echo Trails: Yes Motionscope: Yes  Programmable Antenna Parking: Yes Target Size: Yes Scan Averaging: Yes In the Box: Black GMR Fantom 126 antenna and pedestal Mounting hardware kit and template Right-angle power cable (15 meters) Right-angle network cable (15 meters)  Voltage converter Documentation WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Array Size (Inches): 72" Power - Output: 120w Range - Max (Miles): 96nm Box Dimensions: 9"H x 13"W x 80"L WT: 89.2 lbs UPC: 753759331443
