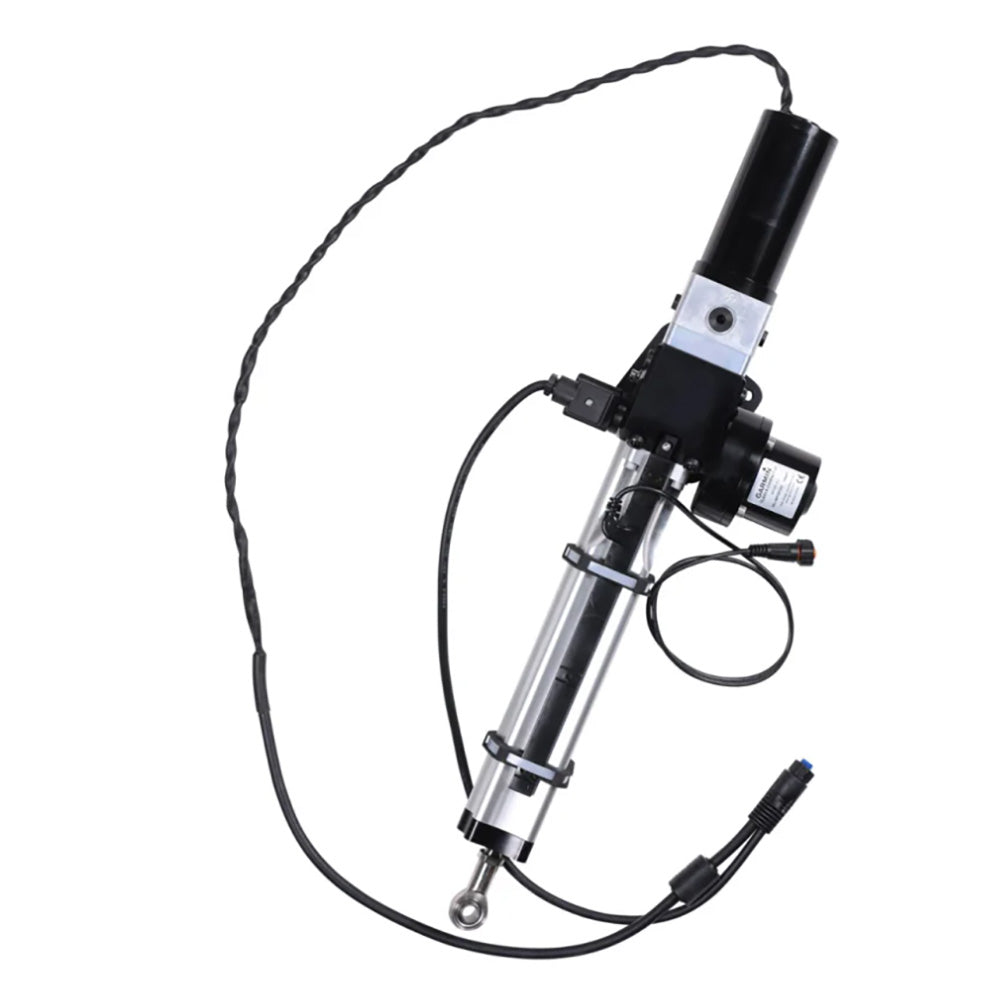

Garmin Class B Compact v2 Drive Unit [010-12029-01]

Class B Compact v2 Drive UnitThe Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement. Specifications: Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm) Drive unit type: Integrated hydraulic linear Stroke length: 10" (254 mm) Maximum thrust: 1,610 lbs (730 kg) Supply voltage: 10V to 30 V (regulated to 12V by the ECU) Average clutch current at 12V: 1 Amp Average motor current at 12V: 2-4 Amps Operating temperature: -15° C to 50° C Specifications:Steering Type: Hydraulic
SKU: PM-103387
Availability: Out Of Stock
$2,099.99
$2,099.99
Subtotal: $2,099.99
10 customers are viewing this product
Garmin Class B Compact v2 Drive Unit [010-12029-01]

Garmin Class B Compact v2 Drive Unit [010-12029-01]

$2,099.99

Garmin Class B Compact v2 Drive Unit [010-12029-01]

$2,099.99

Class B Compact v2 Drive Unit

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Specifications:

  • Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
  • Drive unit type: Integrated hydraulic linear
  • Stroke length: 10" (254 mm)
  • Maximum thrust: 1,610 lbs (730 kg)
  • Supply voltage: 10V to 30 V (regulated to 12V by the ECU)
  • Average clutch current at 12V: 1 Amp
  • Average motor current at 12V: 2-4 Amps
  • Operating temperature: -15° C to 50° C

Specifications:

  • Steering Type: Hydraulic
