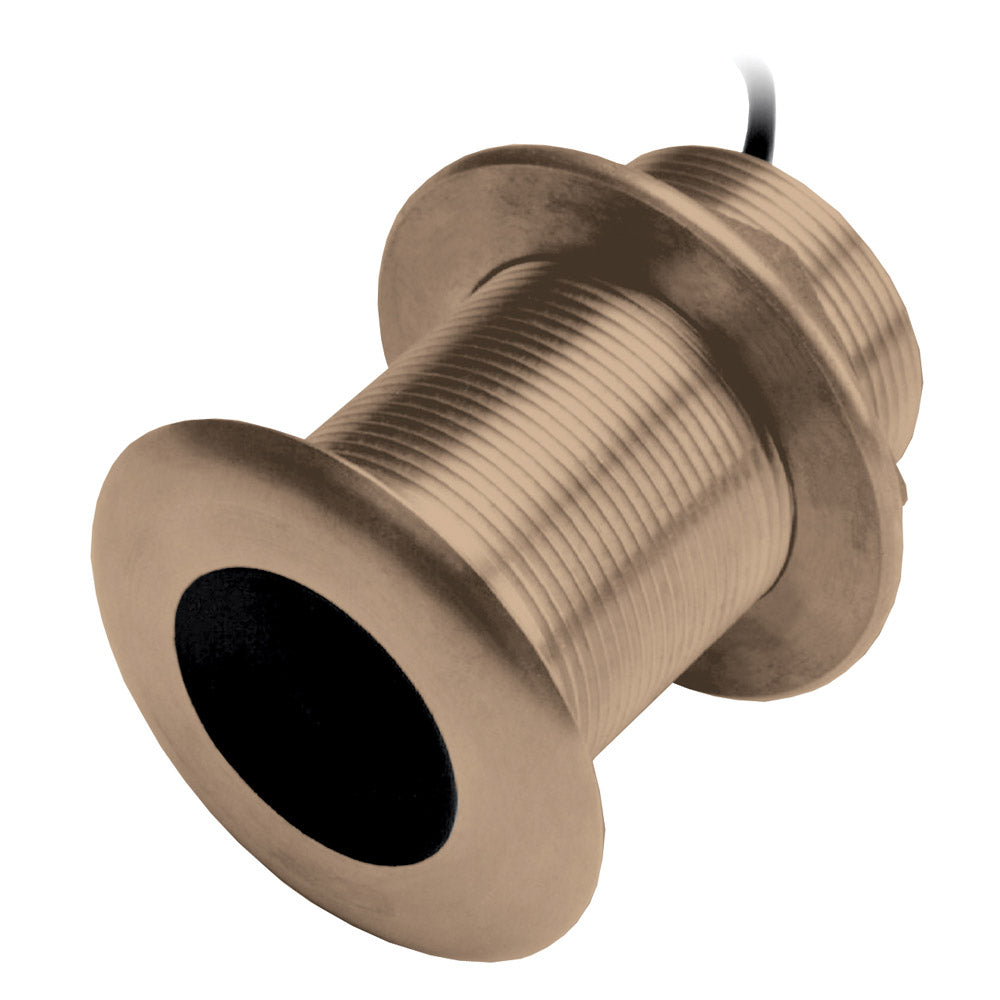

Garmin B75M Bronze 20 Degree Thru-Hull Transducer - 600W, 8-Pin [010-11636-22]

Airmar B75Mw/20° Tilt600WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 20 degree tilt and provides both depth and temperature data to your Garmin Marine NetworkMax Depth - 800'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs UPC: 753759972035 Owner's Manual (pdf)Brochure (pdf)
