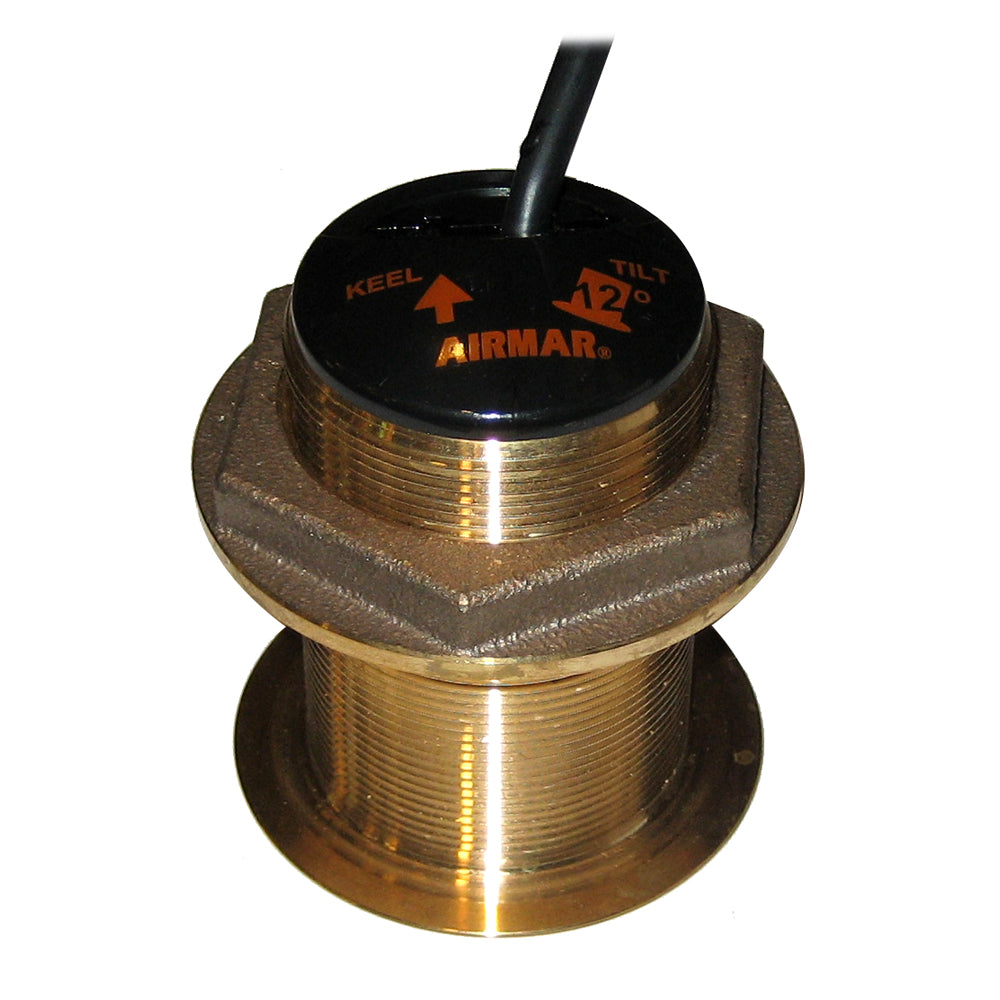

Furuno B60-12, 12 Degree Tilted Element Transducer (10-Pin) [525T-LTD/12]

B60 Tilted Element™ 12°12° titled version is designed for 8° - 15° deadrise anglesThe bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.Features: Depth/Temp 50/200 kHz 600w RMS Mid-performance Bronze WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Box Dimensions: 6"H x 8"W x 9"L WT: 4.6 lbs UPC: 611679307941 Owner's Manual (pdf)Brochure (pdf)
