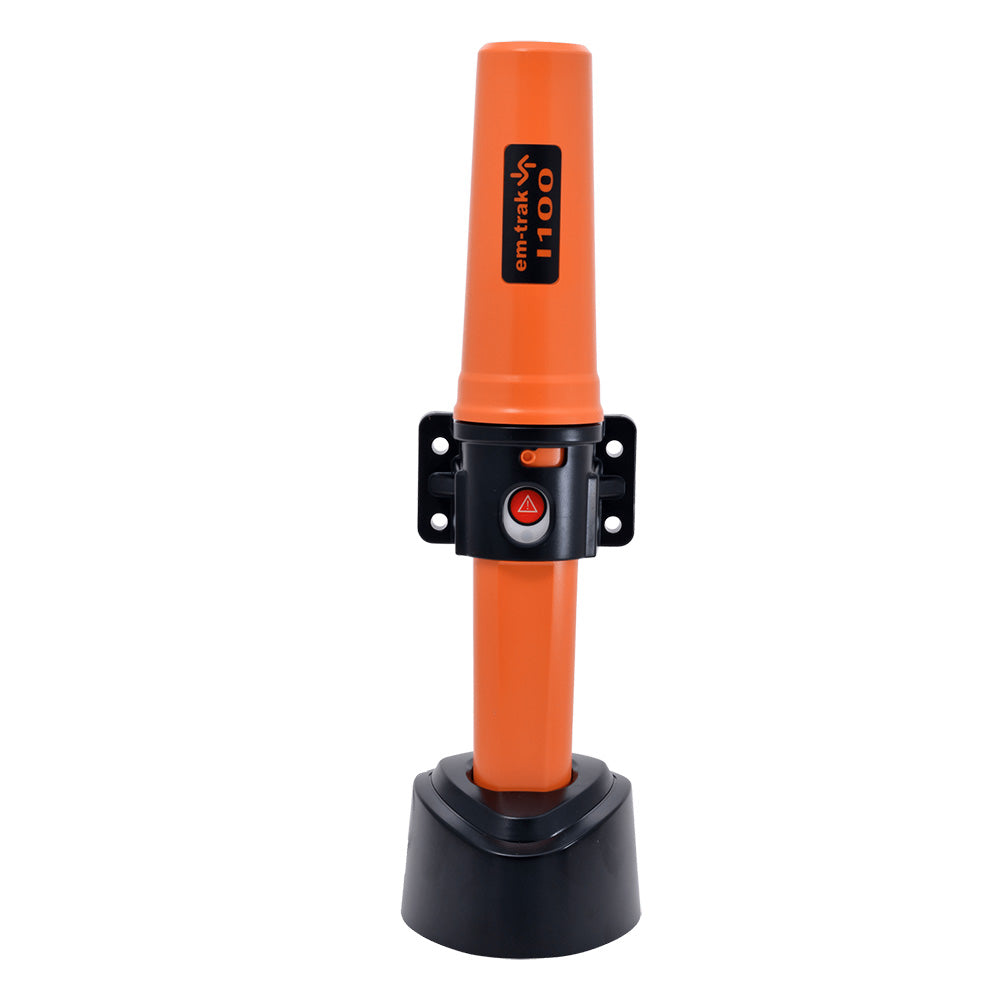

I100-X Small Vessel Tracker

The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.

I100-X can power itself using its own internal rapid recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source such as an engine, battery, or solar, with the battery then acting as a backup.

I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.

Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.

Features:

  • Certified AIS Class B Transponder
  • 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation
  • It takes only 5 hours to completely recharge
  • Rugged IPX8 design ensures the operational performance

Physical & Environmental Specifications:

  • Size (H x W): 370 x 67 mm
  • Weight: 355g
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx8 (1.1m 30 mins)

Electrical Specifications:

  • Battery Capacity: 2300mAh
  • Battery Type: 3.7V Li-Ion rechargeable
  • Battery Life (default operating conditions): 120 hours

Standards Compliance:

  • AIS Standards: IEC 62287-1 Ed. 3.  ITU-R M.1371.5
  • Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
  • Environmental Standards: IEC 60945 Ed. 4
  • GNSS Performance Standards: IEC 61108-1 Ed 2.0

GNSS:

  • Systems Supported: GPS & GLONASS
  • Channels: 72
  • Time to First Fix from Cold Start: 26s

VHF Transceiver:

  • VDL Access Scheme: CSTDMA
  • Operating Frequency: 156.025MHz – 162.025MHz
  • Channel Bandwidth: 25kHz
  • Receivers / Transmitters: 1 x transmitter
  • AIS Transmitter Power: 2W (33dBm radiated)

User Interface:

  • Buttons: SOS
  • Indicators: Status indicator

Charging Dock:

  • Size (H x W x D): 110mm x 120mm x 78mm
  • Weight: 360g
  • Power Supply: 115V / 240V AC

Configuration Dock:

  • Size (H x W x D): 110mm x 120mm x 78mm
  • Weight: 360g
  • Power Supply: 115V / 240V AC
  • PC Interface: USB (cable supplied)

In the Box:

  • 1 x Identifier
  • 1 x Vessel Bracket and a Fixings Pack
  • 1 x Charging Dock

*NOTE: You will also require a configuration dock product code: 417-0074. This is used to program the unit before deployment.

Specifications:

  • Frequency: 156.025MHz u2013 162.025MHz
  • Operational Life (Hours): 120.00
  • Box Dimensions: 5"H x 10"W x 17"L WT: 3.6 lbs
