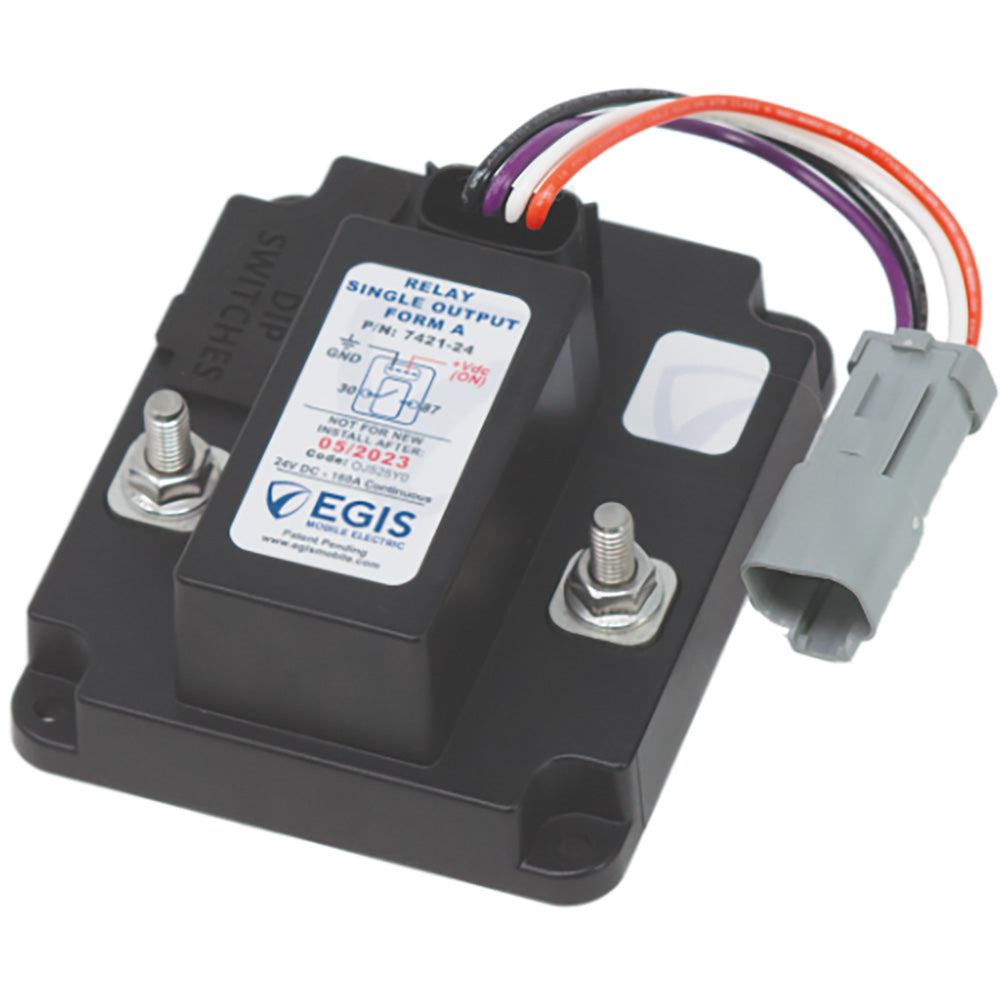

Egis TH3 Relay 160A - 24V [7421-24]

TH3 Relay 160A - 24VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.8 lbs UPC: 850035199930 Brochure (pdf)
