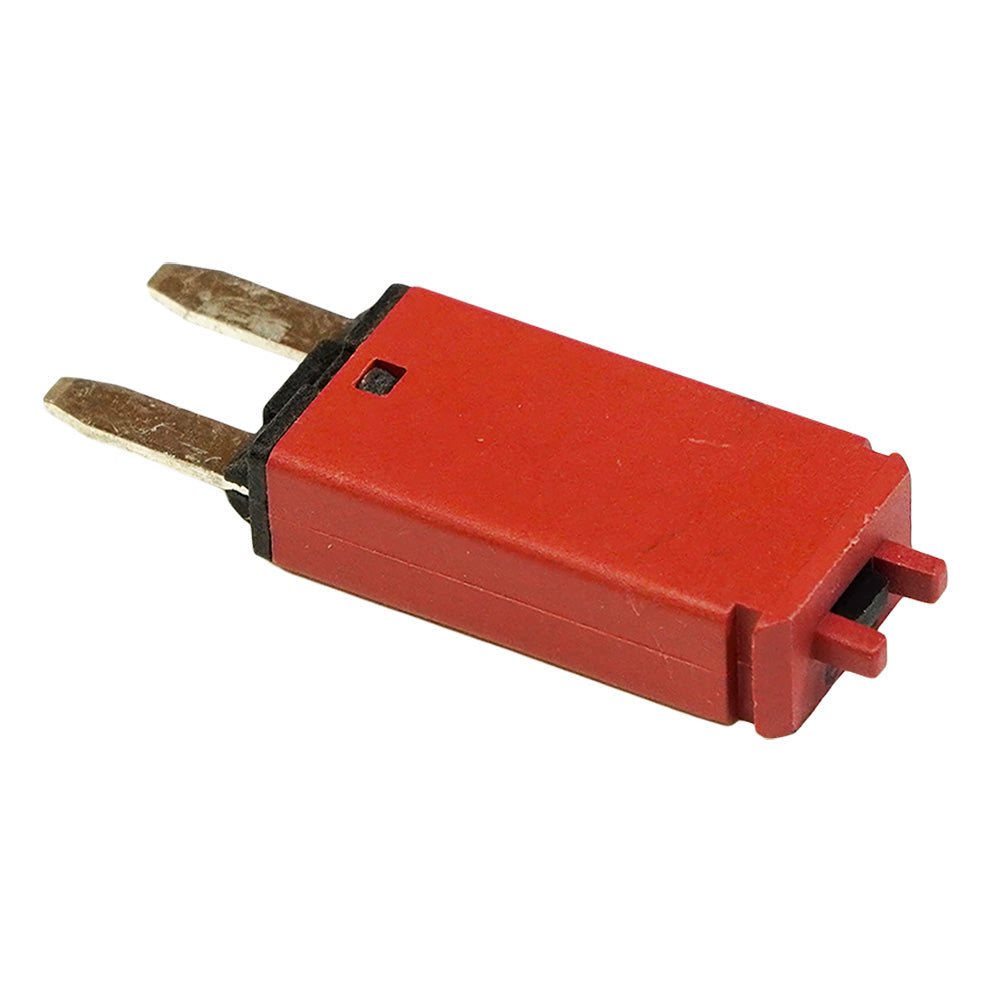

Egis ATM/MINI 10 AMP Circuit Breaker - Type 3 [4720-10]

ATM/MINI 10 AMP Circuit Breaker - Type 3Features: Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems. 32 Max VDC Rating easily supports 12- and 24-VDC systems. Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.   Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements. Harsh Environment design with high temperature materials and tin-plated copper alloy conductors. Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution. Specifications: Amperage: 10a Box Dimensions: 2"H x 2"W x 4"L WT: 0.1 lbs UPC: 850053879814
