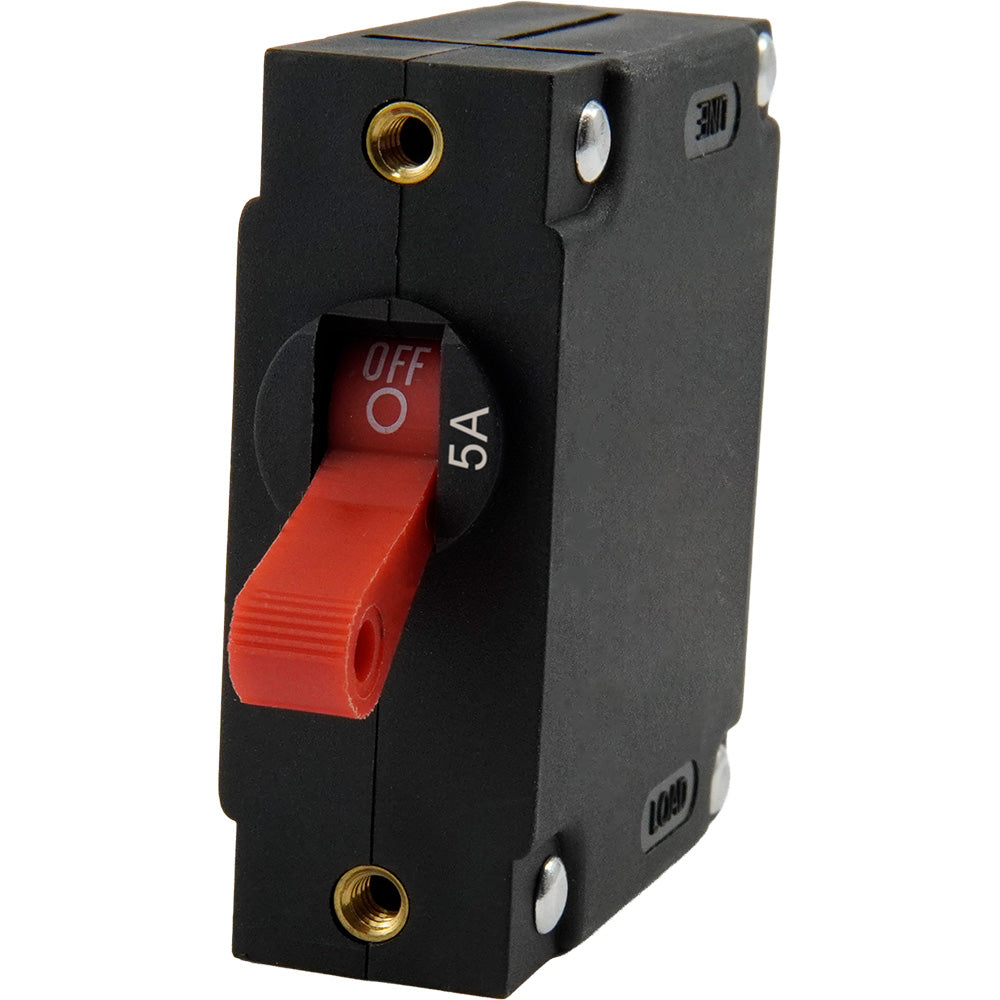

Egis A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 5A [3221-05]

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 5a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331087 Brochure (pdf)
