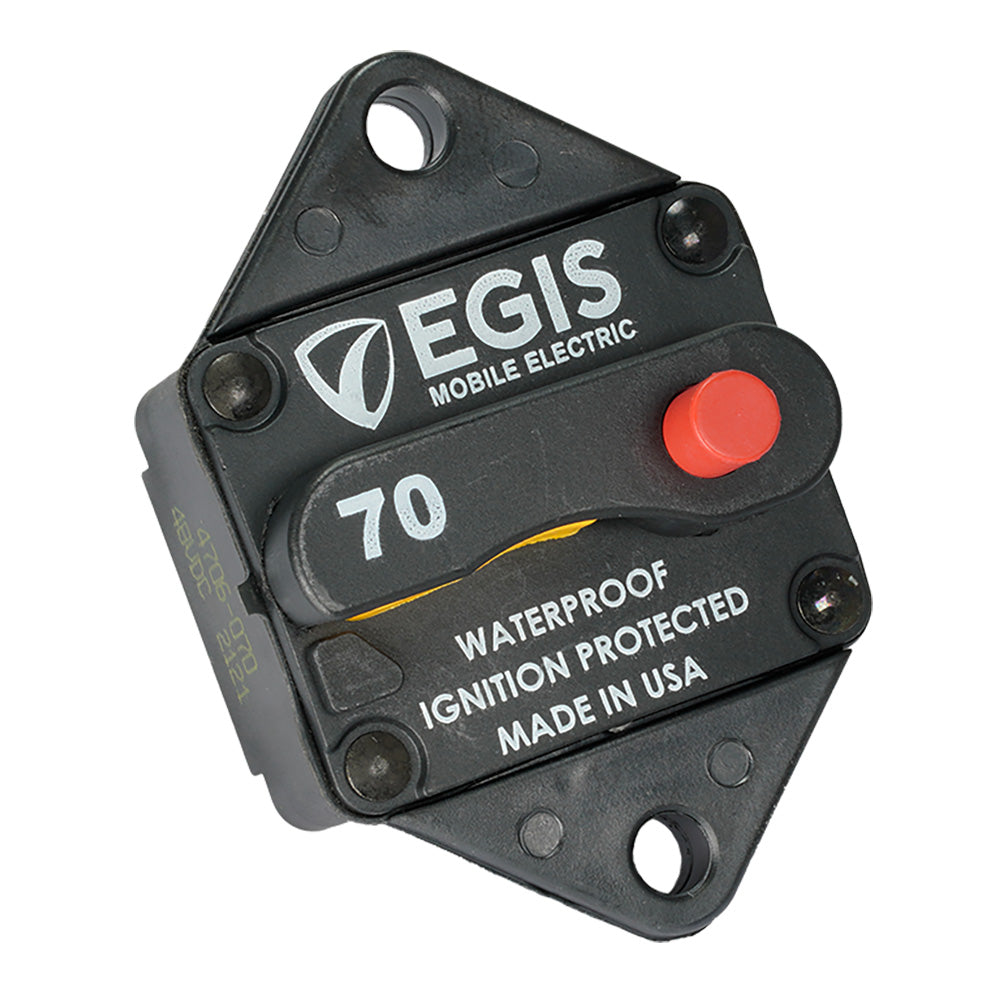

Egis 70A Circuit Breaker - 85 Series - Panel Mount [4706-070]

Egis 70A Circuit Breaker - 85 Series - Panel Mount [4706-070]

70A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 70a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199053 Brochure (pdf)
SKU: PM-114434
Availability: Out Of Stock
$36.00
$48.20
$36.00
Subtotal: $36.00
10 customers are viewing this product
Egis 70A Circuit Breaker - 85 Series - Panel Mount [4706-070]

Egis 70A Circuit Breaker - 85 Series - Panel Mount [4706-070]

$48.20 $36.00
Egis 70A Circuit Breaker - 85 Series - Panel Mount [4706-070]

Egis 70A Circuit Breaker - 85 Series - Panel Mount [4706-070]

$48.20 $36.00
Description

70A Circuit Breaker - 85 Series - Panel Mount

Features:

  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
  • High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
  • High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
  • Ignition-protected safe for installation in closed compartments with potential explosive gases.
  • Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers.

Specifications:

  • Amperage: 70a
  • Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs
  • UPC: 850035199053

Brochure (pdf)
