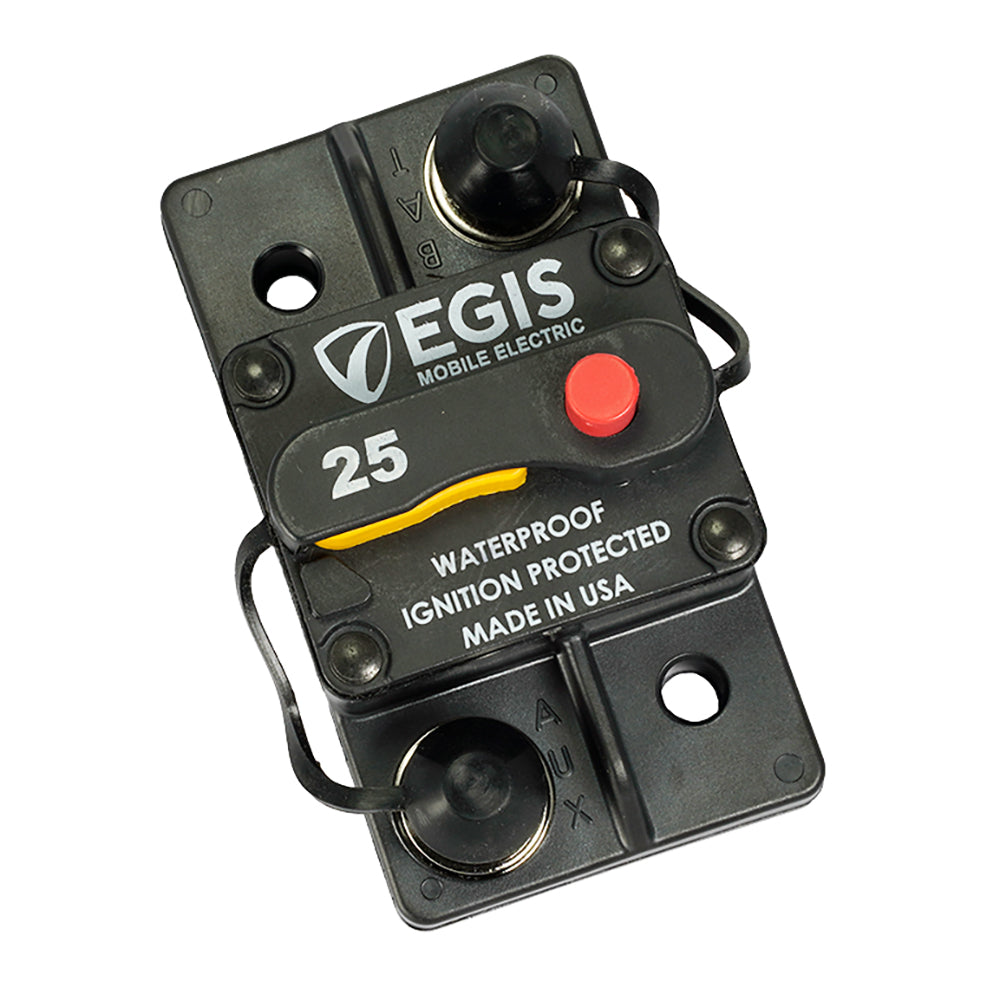

25A Surface Mount Circuit Breaker - 285 Series

This 25A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

  • Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
  • Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

  • Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
  • High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
  • High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

  • Continuous Current Amps: 25
  • Max Voltage: 48
  • Cycling Endurance: 100
  • Interrupt Current @16 VDC (Amps): 3,000
  • Interrupt Current @28 VDC (Amps): 1,500
  • Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Integrated Terminal Insulators

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

Specifications:

  • Amperage: 25a
  • Box Dimensions: 3"H x 3"W x 5"L WT: 0.35 lbs
  • UPC: 850035199107

Brochure (pdf)
