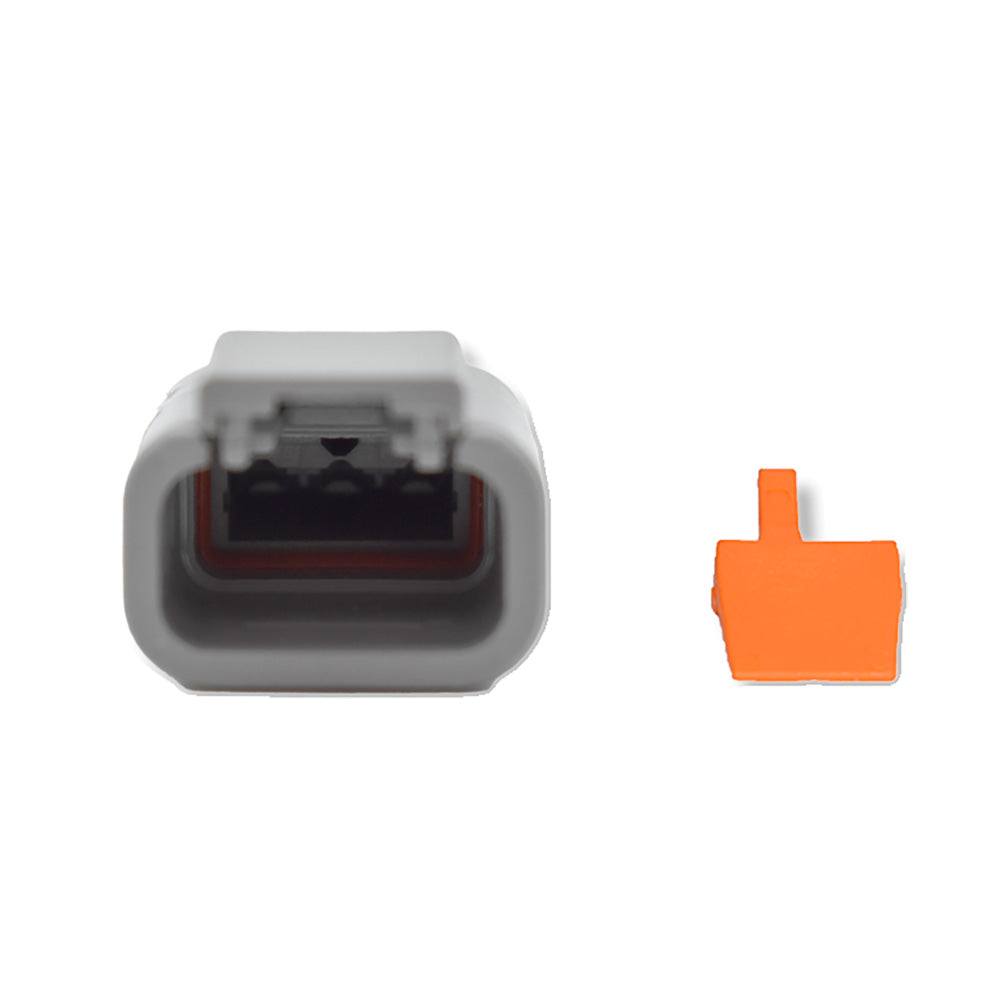

Bluewater 3 Position DTM Male Connector w/Wedge Lock [DTM04-3P]

Bluewater 3 Position DTM Male Connector w/Wedge Lock [DTM04-3P]

3 Position DTM Male Connector with Wedge LockThe DTMO4-3P and DTMO6-3S connectors are part of the DTM series and form a complete 3-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.Designed for reliability in harsh environments, the DT series can deliver up to 7.5 amps continuously. This 3-pin DTM connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.Each 3-pin DTM connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring consistent performance and long-lasting electrical connections even in demanding and harsh conditions.Features: Comes in bags of 100 with a separate bag of wedge locks included. Male uses Solid DTM 16-20AWG Machined Terminal. Female uses DTM 16-18AWG Machined Terminal or DTM 18-20AWG Machined Terminal Specifications: Heat Shrink: No Package Qty: 100 Box Dimensions: 0"H x 4"W x 5"L WT: 0.01 lbs UPC: 810196333307 Brochure (pdf)
SKU: PM-111072
Availability: Out Of Stock
$2.64
$0.00
$2.64
Subtotal: $2.64
10 customers are viewing this product
Bluewater 3 Position DTM Male Connector w/Wedge Lock [DTM04-3P]

Bluewater 3 Position DTM Male Connector w/Wedge Lock [DTM04-3P]

$0.00 $2.64
Bluewater 3 Position DTM Male Connector w/Wedge Lock [DTM04-3P]

Bluewater 3 Position DTM Male Connector w/Wedge Lock [DTM04-3P]

$0.00 $2.64
Description

3 Position DTM Male Connector with Wedge Lock

The DTMO4-3P and DTMO6-3S connectors are part of the DTM series and form a complete 3-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.

Designed for reliability in harsh environments, the DT series can deliver up to 7.5 amps continuously. This 3-pin DTM connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.

Each 3-pin DTM connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring consistent performance and long-lasting electrical connections even in demanding and harsh conditions.

Features:

  • Comes in bags of 100 with a separate bag of wedge locks included.
  • Male uses Solid DTM 16-20AWG Machined Terminal.
  • Female uses DTM 16-18AWG Machined Terminal or DTM 18-20AWG Machined Terminal

Specifications:

  • Heat Shrink: No
  • Package Qty: 100
  • Box Dimensions: 0"H x 4"W x 5"L WT: 0.01 lbs
  • UPC: 810196333307

Brochure (pdf)
