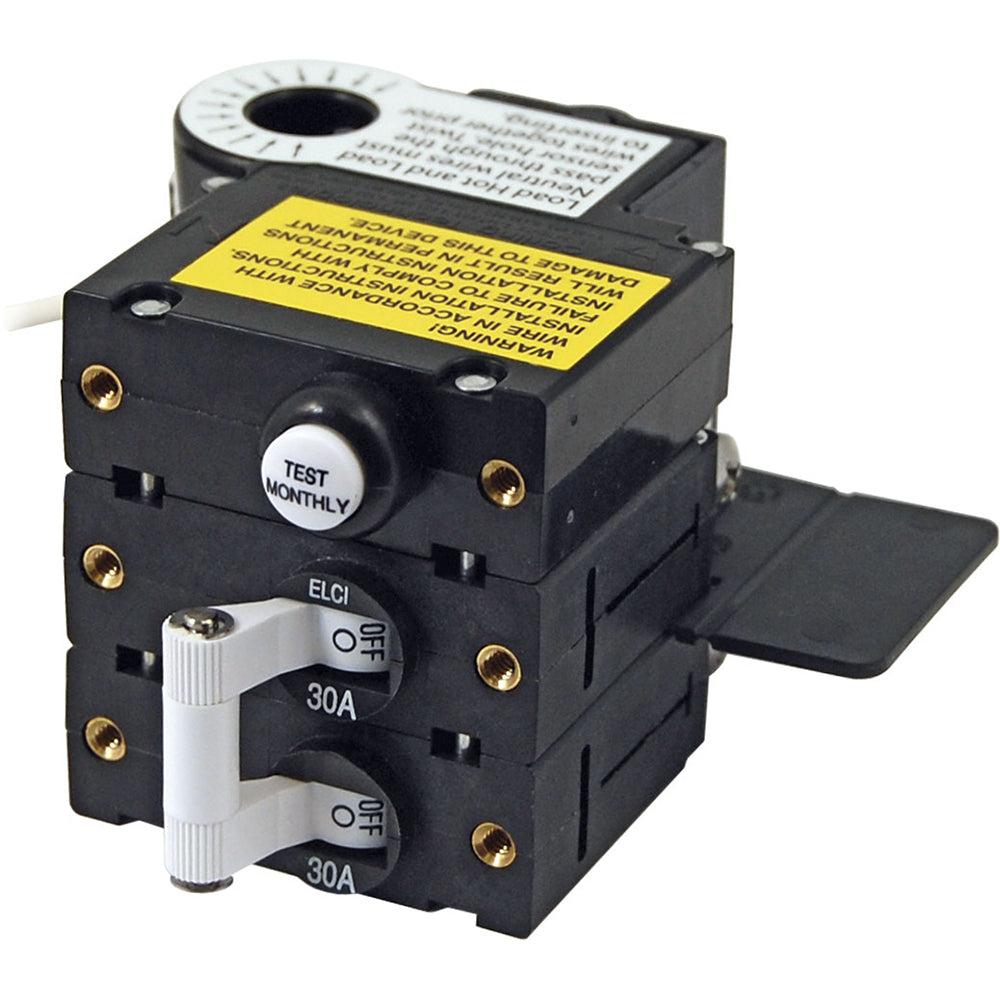

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100]

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30AFeatures: Trips on short circuit, overload, or leakage to ground Front panel mount—installed in a power distribution panel Specifications: Amperage: 30A Color: White Actuator Style: Toggle Poles: 2 Ignition Protected: Yes Max Voltage: 240VAC/120VAC per pole Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 5000A Minimum Operating Temperature: -35 degrees C Max Operating Temperature: 65 degrees C Leakage Trip Amps: 30mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SKU: PM-69223
Availability: 8 In Stock
$355.00
$448.26
$355.00
Subtotal: $355.00
10 customers are viewing this product
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100]

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100]

$448.26 $355.00

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A [3106100]

$448.26 $355.00

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Features:

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 30A
  • Color: White
  • Actuator Style: Toggle
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 240VAC/120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 65 degrees C
  • Leakage Trip Amps: 30mA

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
