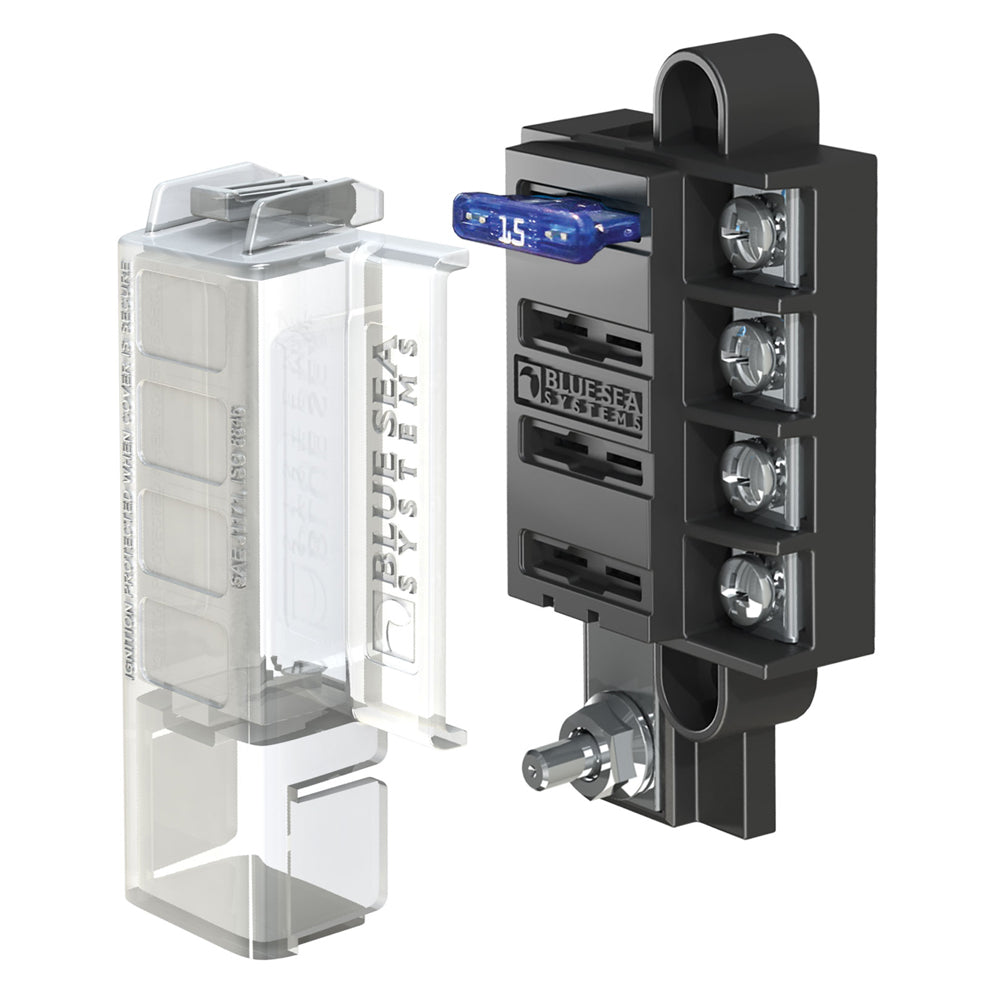

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]

ST Blade Compact Fuse Blocks - 4 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits:4 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage:32V DC Mounting:t#8 Screw (M4) Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 3"W x 8"L WT: 0.5 lbs UPC: 632085050450
SKU: PM-58585
Availability: Out Of Stock
$27.00
$38.02
$27.00
Subtotal: $27.00
10 customers are viewing this product
Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]

$38.02 $27.00

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover [5045]

$38.02 $27.00

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Small format standard and custom labels available


Specifications
  • Circuits:4
  • Maximum Amperage: 100A per block / 30A per circuit
  • Maximum Voltage:32V DC
  • Mounting:t#8 Screw (M4)
  • Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: ATO/ATC
  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 3"W x 8"L WT: 0.5 lbs
  • UPC: 632085050450
