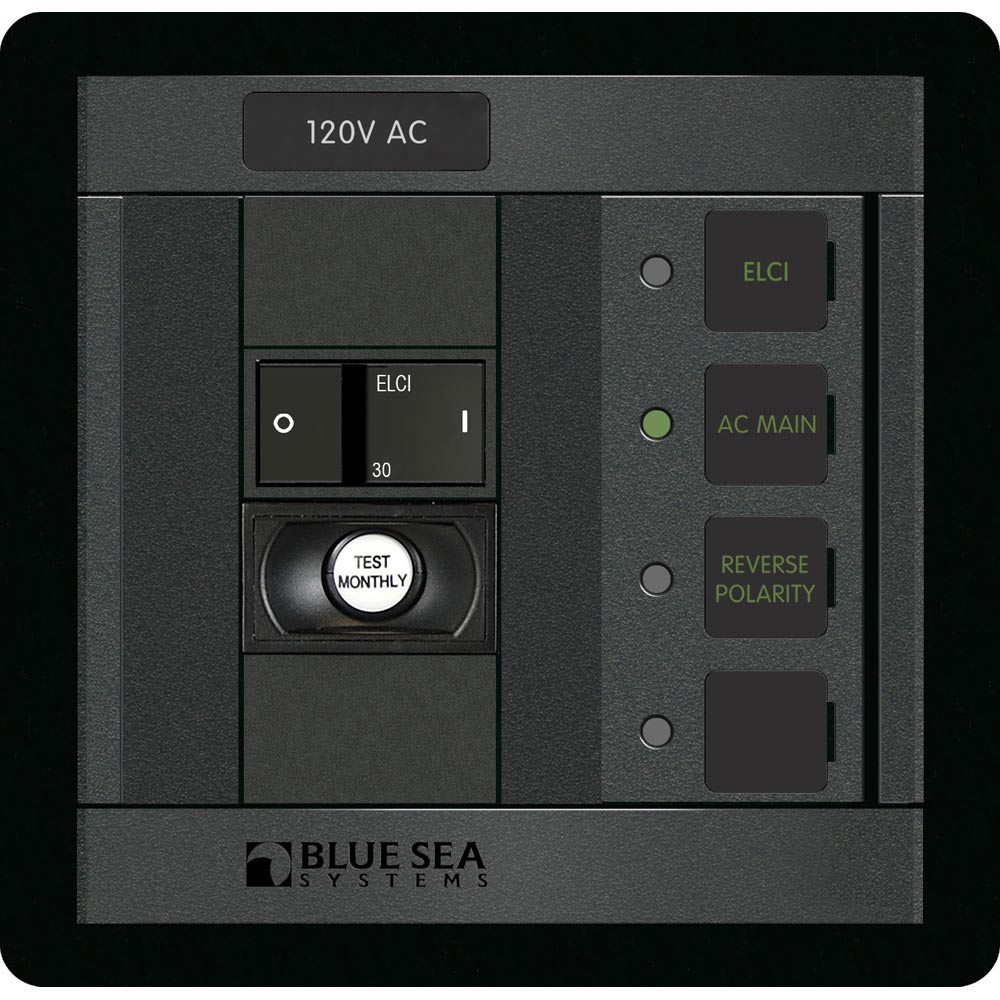

Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]

ELCI Main 30A Double Pole PanelFeatures: One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection Red " Reverse Polarity" LED All circuit label positions are backlit "ON" indicating LEDs Specifications: Positions:t1 Nominal Voltage:t120V AC Height:t4.75" (120.65mm) Width:t4.88" (123.95mm) Depth:t3.00" (76.2mm) Weight:t1.10lb (0.5kg) Includes:(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30AWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: AC Box Dimensions: 6"H x 6"W x 9"L WT: 2.2 lbs UPC: 632085015022 Quick Guide (pdf)Owner's Manual (pdf)
