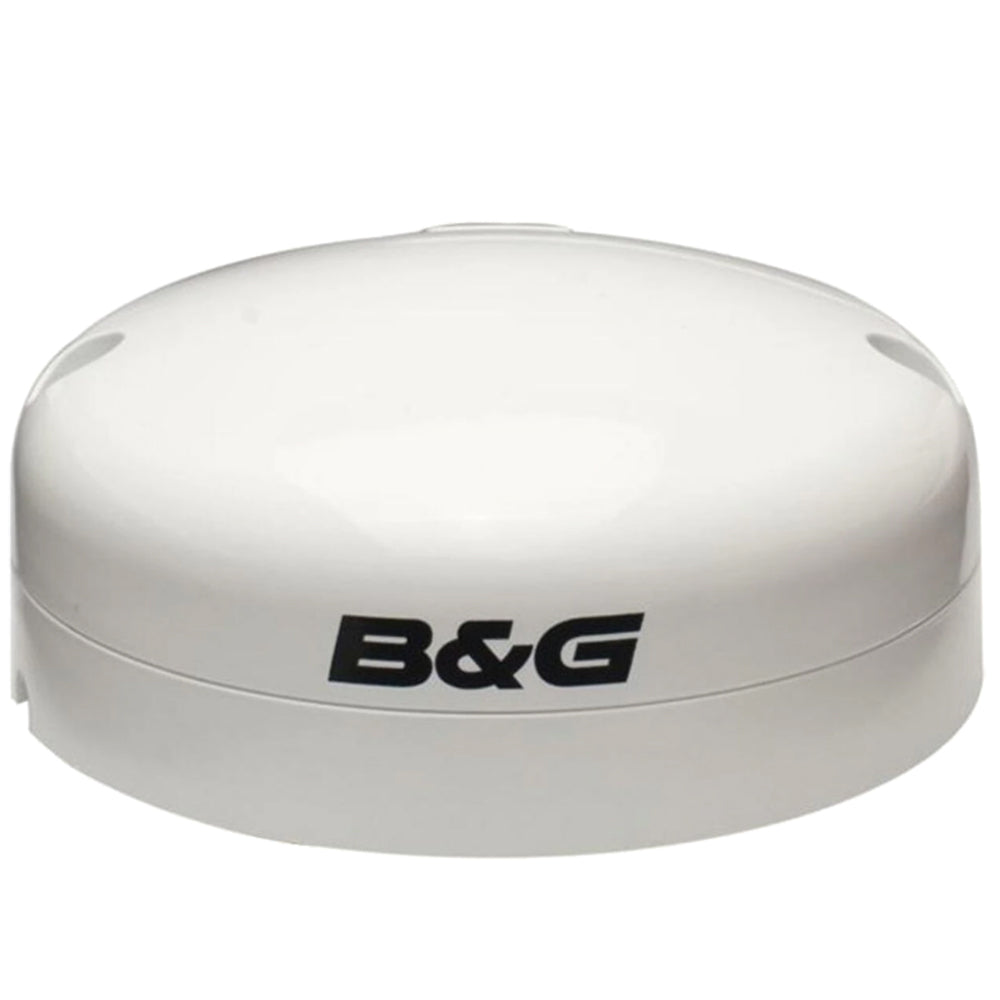

BG ZG100 GPS Antenna [000-11048-002]

ZG100 GPS AntennaThe B & G ZG100 GPS antenna provides precise and dependable position data making it the perfect partner for B & G chartplotters and instrument systems.The highly accurate 10 Hz GPS gives a precise and smooth update of position information during acceleration and maneuvering, rapid signal acquisition, and consistent position accuracy augmented by secondary satellite systems like WAAS, EGNOS, MSAS, and Galileo. It is also QZSS-ready.Features: Highly accurate position 10Hz update rate Sail Specific COG/SOG filtering for optimum performance GPS/Galileo support Augmented with WAAS, EGNOS, and more Integrated heading sensor Heel & Trim sensors Compact, waterproof (IP67) design NMEA 2000® What's in the Box? N2K-T-RD Network T-Connector NMEA 2000 6ft Network Extension Cable Specifications: Waterproof rating: IPX-7 Dimensions: Diameter3.54" (90mm) Weight: 0.30 lbs (0.14 kg) Operating Temperature Range: -13°F to 149°F (-25°C to 65°C) Compass Safe: 21.00" (518mm) Storage Temperature Range: -22°F to 158°F (-30°C to 70°C) Dimensions: W x H x D3.54" (90mm) x 1.50" (38mm) Warranty Period: 5 Years Supply Voltage: 9v-18v NMEA 0183 Sentences supported: no NMEA 2000 Connectivity: Yes
