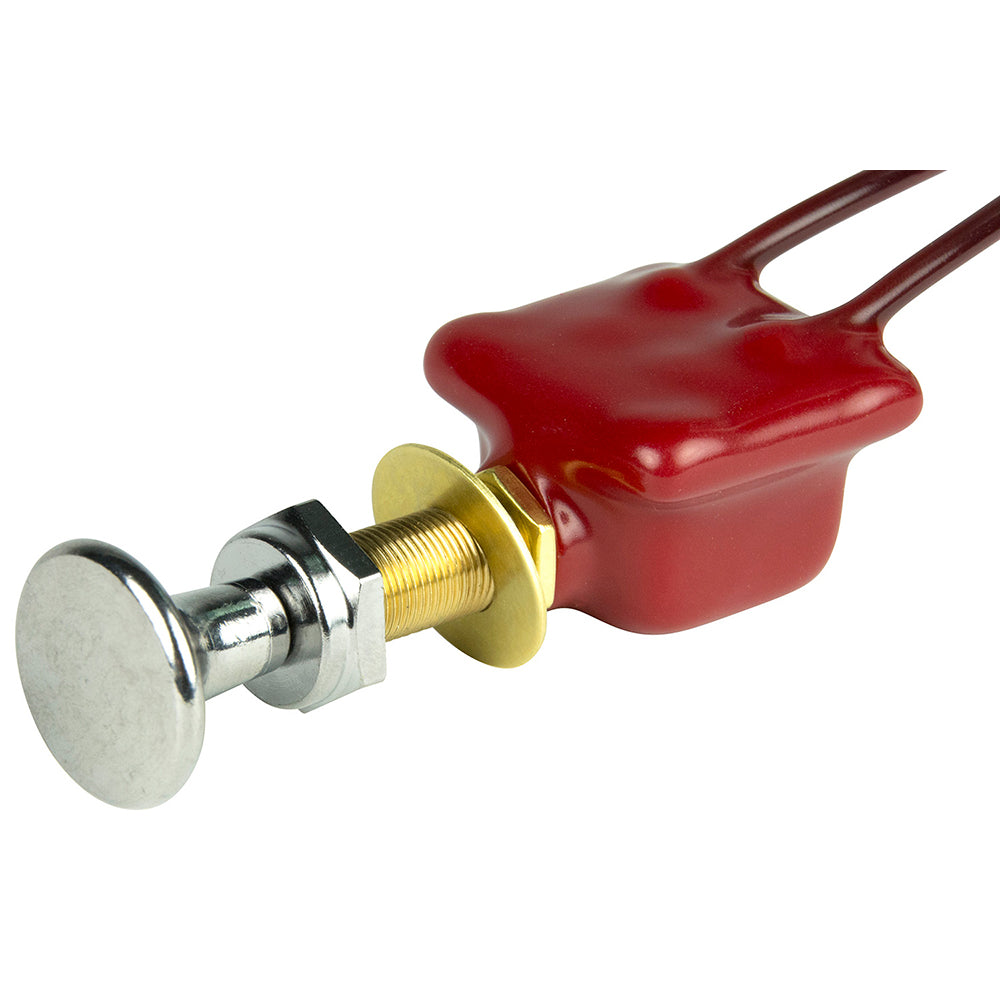

BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON [1001306]

BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON [1001306]

2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ONSingle pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. Plasticized body helps seal out moisture and dirt. All knobs are screw-on type.Features: Nominal voltage is 6-36V DC Rated for 10A at 12V DC Two 8" 16 AWG wire leads for terminals Fits panels up to 5/8" thick Same as Cole Hersee part number M-606 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Chrome Action: On/Off Throw/Pole: SPST Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 870216046006
SKU: PM-67445
Availability: 15 In Stock
$20.00
$27.26
$20.00
Subtotal: $20.00
10 customers are viewing this product
BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON [1001306]

BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON [1001306]

$27.26 $20.00
BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON [1001306]

BEP 2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON [1001306]

$27.26 $20.00
Description

2-Position SPST Push-Pull Switch w/Wire Leads - OFF/ON

Single pole, single throw switch turns one circuit on and off. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. Plasticized body helps seal out moisture and dirt. All knobs are screw-on type.

Features:

  • Nominal voltage is 6-36V DC
  • Rated for 10A at 12V DC
  • Two 8" 16 AWG wire leads for terminals
  • Fits panels up to 5/8" thick
  • Same as Cole Hersee part number M-606

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Color: Chrome
  • Action: On/Off
  • Throw/Pole: SPST
  • Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs
  • UPC: 870216046006
