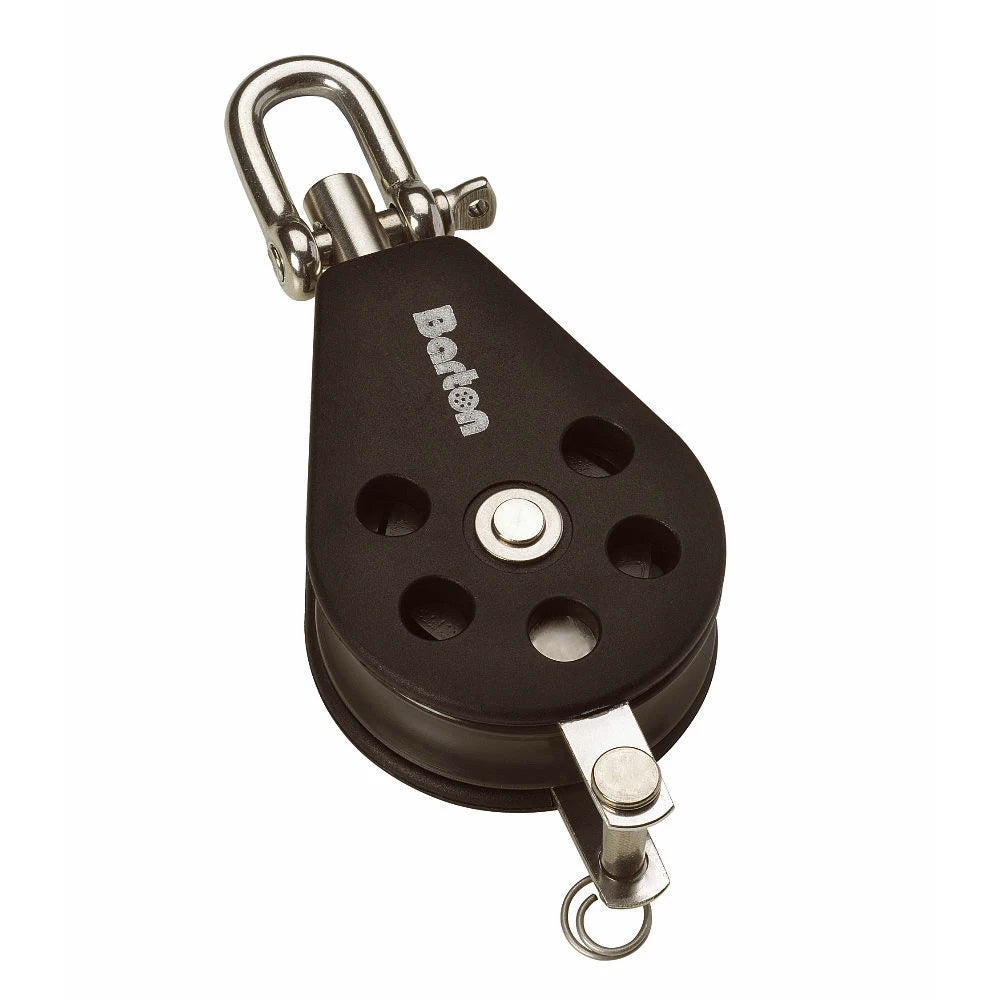

Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket [N02131]

Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket [N02131]

Size 2 35mm Plain Bearing Pulley Block Single Swivel & BecketThe Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.Suitable for up to 8mm (5/16") rope.Specifications: Weight: 60 g Dimensions: 93 × 38 × 24 mm Size: 2 (35MM) Block Type: Swivel + Becket No. of Sheaves: Single Bearing Type: Plain Sheave Size: 35mm x 11mm (1 3/8" x 15/32") Max rope diameter: 8mm (5/16") SWL: 370kg (815lbs) Break load: 740kg (1630lbs) Max rolling load (ball bearing blocks): 260kg (573lbs) Quick Guide (pdf)
SKU: PM-111835
Availability: Out Of Stock
$27.34
$30.37
$27.34
Subtotal: $27.34
10 customers are viewing this product
Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket [N02131]

Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket [N02131]

$30.37 $27.34
Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket [N02131]

Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket [N02131]

$30.37 $27.34
Description

Size 2 35mm Plain Bearing Pulley Block Single Swivel & Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16") rope.

Specifications:

  • Weight: 60 g
  • Dimensions: 93 × 38 × 24 mm
  • Size: 2 (35MM)
  • Block Type: Swivel + Becket
  • No. of Sheaves: Single
  • Bearing Type: Plain
  • Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
  • Max rope diameter: 8mm (5/16")
  • SWL: 370kg (815lbs)
  • Break load: 740kg (1630lbs)
  • Max rolling load (ball bearing blocks): 260kg (573lbs)

Quick Guide (pdf)
