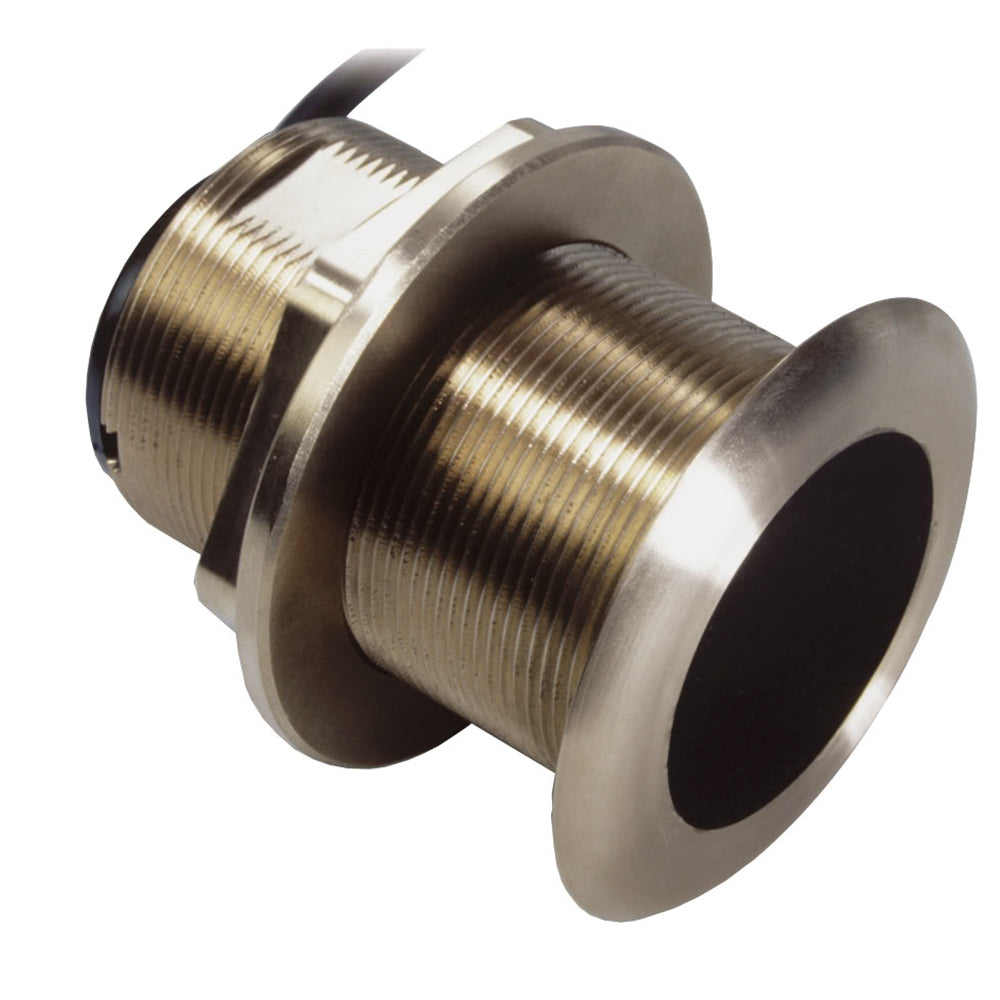

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20 [B60-20-HB]

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20ºThe bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.Features: Engineered for center-console and trailered boats Low-profile protrusion below the hull No affect on your boats running performance Arrow on cap points toward keel when installed Built-in temperature sensor Boat Size: Up to 8 m (25') Bronze transducer housing Specifications: Weight: 1.4 kg (3 lb) Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Mounting Style: Thru-Hull Pins: 7 Box Dimensions: 1"H x 5"W x 8"L WT: 4.9 lbs Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
