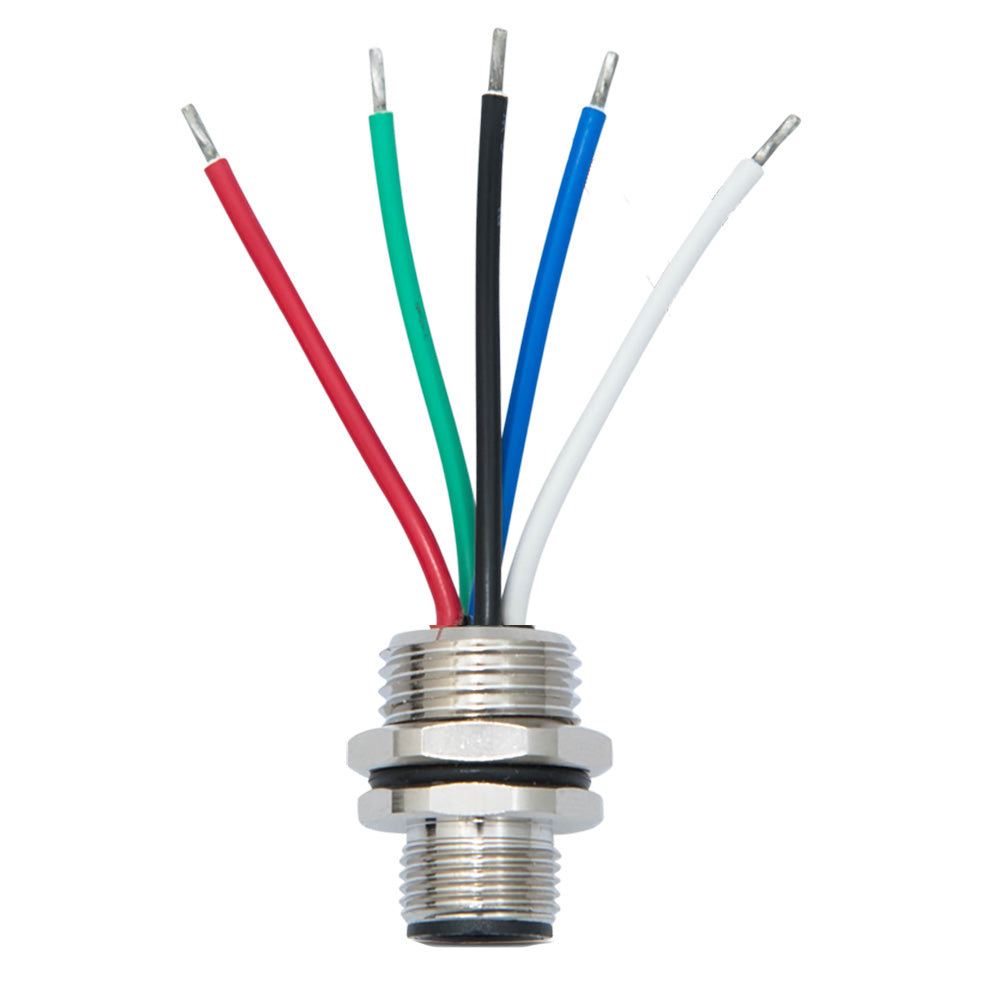

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male [A2K-PMW-M]

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - MalePanel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 1"W x 5"L WT: 0.05 lbs UPC: 5060998710164 Owner's Manual (pdf)Brochure (pdf)
