Actisense PRO NMEA 0183 Multiplexer [PRO-MUX-2]

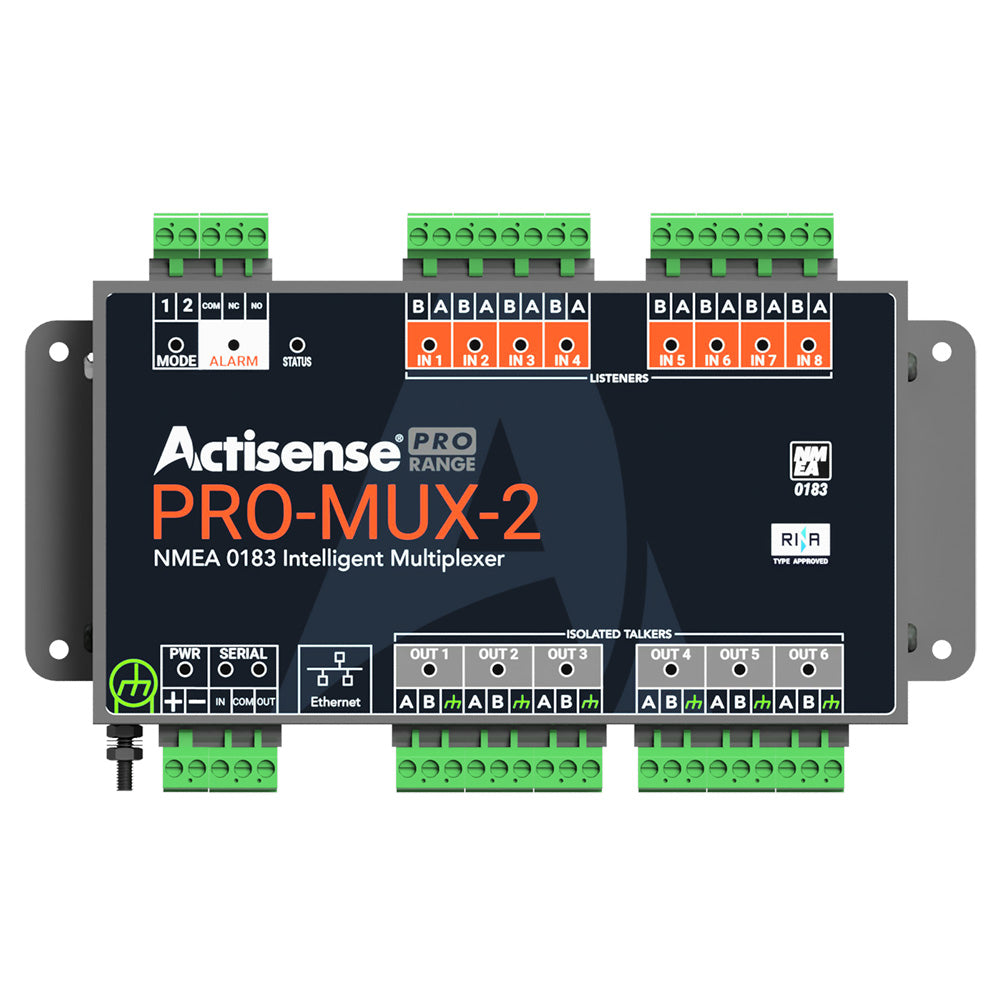

PRO NMEA 0183 MultiplexerEight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED’s 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohm Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 540g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications Compass Safe Distance - 175mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs UPC: 5060998710584 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
