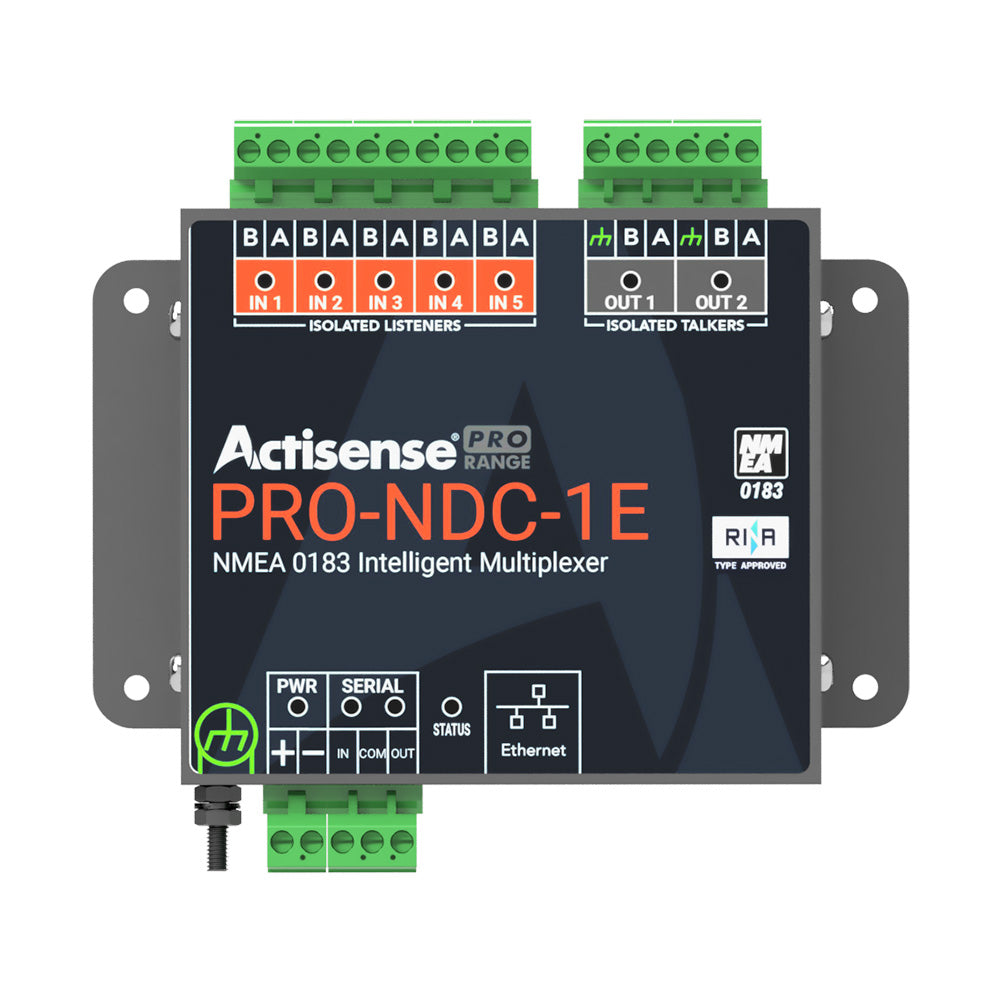

Actisense PRO NMEA 0183 Multiplexer - 5 Inputs 2 ISO-Drive Outputs, Ethernet Serial Connections [PRO-NDC-1E]

PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet & Serial ConnectionsThe PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…Rugged, Robust, type-approved multiplexer with powerful, advanced features enables baud rate adjustments, auto-switching, and sentence-level filtering.Features: Auto-switching between inputs to allow for a primary, secondary, and tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web-based UI, no need to manually enter and edit strings of text. RINA type-approved device means the multiplexer is fit for leisure, commercial, and class/type installations. Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments. Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology) A serial port can be used as an additional input/output Ethernet port supports direct and network connections NMEA 0183 streaming via Ethernet Configurable input and output baud rates Allows Data combining and rate conversion 2 independent Autoswitch virtual inputs with priority Isolation from battery supply Diagnostic LED’s Optional DIN rail mount Type Approved Quick and easy to install Configuration using a standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Technical Specifications:Power Supply Input supply voltage - 9 to 35 V DC     Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)     Input protection - Continuous reverse polarity, transient overvoltage, and ESD protection     Power indicator - LED, Blue – indicates unit is functioning correctly     Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners     Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers     Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible     Speed/baud rate - 4800 to 38400 bps     Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm     Talker Output Current Drive - 20 mA maximum per output     Talker Output Protection - Short circuit and ESD     Talker Data Indicator - LED, Orange (Flashes with data rate)     Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)     Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection     Listener Data Indicator - LED, Green (Flashes with data rate)     Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible     Speed/baud rate - 115200 bps     Output voltage drive - >= 2.1V (differential) into 100 ohms     Output current drive - 20 mA max     Output protection - Short circuit and ESD     Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)     Input protection - Current limited, overdrive protection to 40 VDC, and ESD protection     Data Indicators - LED’s: Green = Receive, Orange = Transmit     Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host interface - 10/100BaseT, automatic polarity detection     Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms     Connector - RJ45     Indicators - Green – Link, Yellow – 100 Mbps Isolation NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V     NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V     Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V     Ethernet Port - 2kv for 60s Mechanical Housing Material - 316 Stainless Steel     Dimensions - 139mm (W) x 98mm (H) x 26mm (D)     Weight - 360g     Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7     Compass Safe Distance - 300mm     Type Approval Certificate - RINA     Operating Temperature - -25 to +70°C     Storage Temperature - -40 to +85°C     Relative Humidity (RH) - 95% @ 55°C     Environmental Protection - IP40     Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1 lbs UPC: 5060998710577 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
