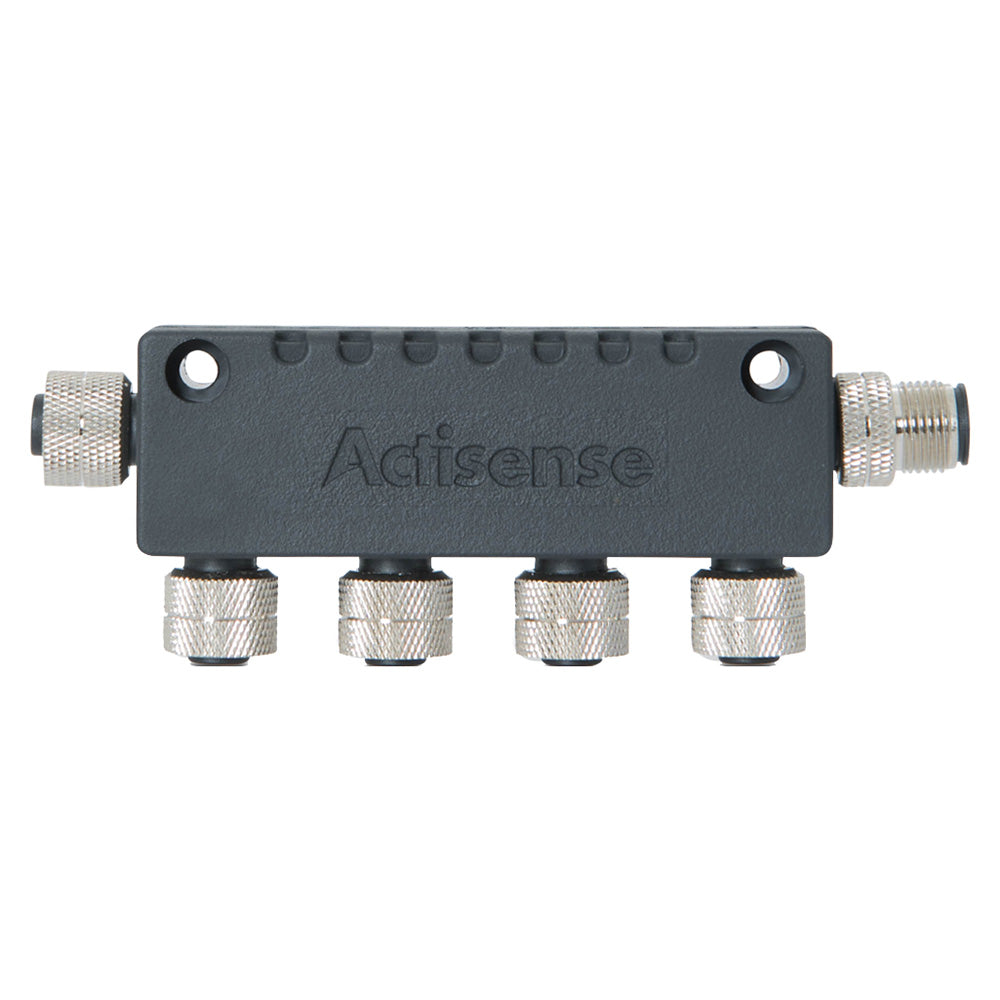

Actisense N2K Micro 4 Way T-Piece [A2K-4WT]

N2K Micro 4 Way T-PieceThe Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Features: NMEA 2000 Approved RoHS Compliant Specifications: Rated Current: 4A Rated Voltage: 60V DC Male Contact: Brass, gold plated Female Contact: Phosphor bronze, gold plated Contact Carrier: PA66 (30% Glass filled), black Contact Polarization: Standard M12 -“A”- polarization Mating Thread: M12 Screw Cap: Brass, nickel plated O-Ring Seal: Rubber, Black Housing: TPU, flame retardant to UL94V-0, Halogen Free Internal Housing Shield: Copper Foil Weight: 105g Protection: IP67 (when mated) Operating Temperature: -20°C to +70°C Storage Temperature: -40°C to +85°C Quick Guide (pdf)
